Hydraulic Test Bench ▸ Multi-station demonstration bench

HydroShow-multi

Multi-station demonstration bench

Easy to use,
Compact and portable solution
Independent adjustment of hot and cold water pressure

+33 2 52 56 04 20

Request a quote

Maximum flow rate

2×15 to 2x35 l/min

Max. generator pressure

6 bar

Pressure measurement

± 0.02 bar

Temperature measurement

± 0,3°C

Products tested

Sector of activity

Electronic Mixer TapMixer TapMechanical Mixer TapThermostatic Mixer TapFaucetTimed Tap

Main functions

The multi-station tap demonstration bench allows simple tests to be carried out on all types of tap (electronic tap, mixing tap, mechanical mixing tap, thermostatic mixing tap, single tap, timed tap).

This equipment is designed for specialist shops that wish to have a system that allows them to carry out quick tests or to demonstrate the correct operation of a tap. The system can also be used to demonstrate the operation of a tap at trade fairs or in a showroom.

The bench is equipped with 5 test lines to compare the function of several faucets.

Operating mode

After installing the taps to be tested, the user sets the independent inlet pressures (hot / cold water). The bench manages the pressure control.

The screen displays the pressure, temperature and flow measurements of hot and cold water.

Functions :

flow rate measurement
temperature measurement
regulation and measurement of inlet pressures
regulation and measurement of inlet pressures

independent pressure variation on hot and cold

measuring the flow rate of water from the hard point on a mechanical mixing valve (corresponds to the “economy” position)
limiting the temperature of the mechanical mixing valve
ensuring the correct temperature setting of a thermostatic mixing valve
measuring the flow rate and duration of flow on a timed mixing valve

Exhibition bench

Thermostatic mixing faucet

The bench can be used to ensure that the temperature control of a thermostatic mixing valve, for example, is correctly positioned in the safety position.

Mechanical mixing faucet

This bench can be used to test the water flow from the hard point or the temperature limitation of the mixing valve.

Mixing faucet

Timed faucet

Flow rate and hardness can be measured on a timed mixing valve.

Demonstration bench for taps

Multi-station demonstration bench

Advantages of HydroShow-multi

Simple parameterization

The bench is equipped with two pressure set point controls (EC/EF) for easy bench adjustment.

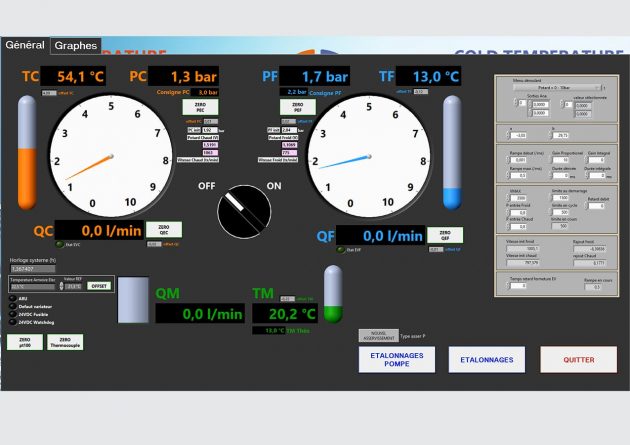

Independent adjustment via the parameter control screen

The EC pressure is set independently of the EF pressure.

TECHNICAL SPECIFICATIONS of the Multi-station Demonstration Bench

Specifications	HydroShow-Multi15	HydroShow-Multi25	HydroShow-Multi35
Maximum flow	2×15 l/min	2×25 l/min	2×35 l/min
Maximum pressure of pressure generator	6 bar	6 bar	6 bar
Minimum pressure of pressure generator	bench supply pressure	bench supply pressure	bench supply pressure
Pressure measurement	± 0,02 bar	± 0,02 bar	± 0,02 bar
Temperature measurement	± 0,3°C	± 0,3°C	± 0,3°C
Flow measurement	± 0,3 l/min	± 0,3 l/min	± 0,6 l/min
Inlet pressure	0 to 4 bar	0 to 4 bar	0 to 4 bar
Output pressure	6 to 10 bar	6 to 10 bar	6 to 10 bar

OPTIONS

Test antiscald

The anti-scald test function is used to check the behavior of a thermostatic mixing valve when the cold water supply is suddenly cut off, in order to verify whether there is a risk of scalding for the user of the faucet.
