Performance Test Bench
- Stand-alone system
- Performance and endurance tests on all types of faucets
- Tested to current standards
Products tested
Sector of activity
Main functions
For a specific and selective need or to evaluate our equipment, LF Technologies offers a complete system of valve test bench for rent with option of purchase on your site or in our premises.

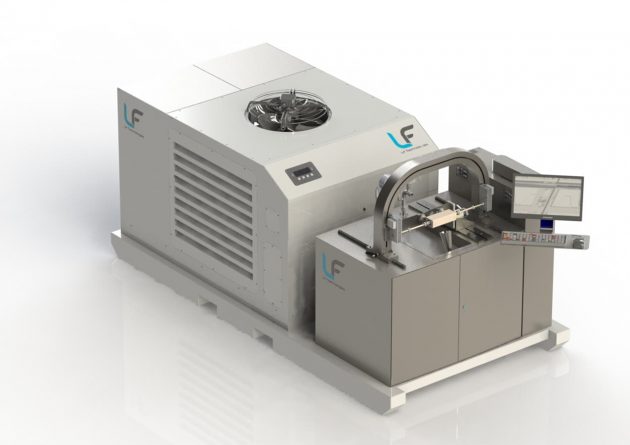

The “SKYDROBENCH” system includes a test bench for all types of sanitary taps as well as a water heating and cooling unit, which operates in a fully autonomous way. The test bench and its hot and cold water generator are placed on a Skid which facilitates transport and installation.
Thanks to SKYDROBENCH, you can conduct performance and endurance tests of all types of sanitary fitting: Single Faucets, Mixers, Mechanical Mixing Valves, Thermostatic Mixing Valves, Self-closing Faucets, Electronic Faucets, according to custom tests or according to NF, EN, NHS, ASSE NF,EN, NHS, ASSE (ASME A112.18.1, EN13828, EN1567, NF077, NF079, NHSD08) standards.
Key strengths
- Autonomous system (only requires electrical and pneumatic power supply) operating in closed loop (no consumption of water)
- Fast installation, easy transport
- Wide variety of tests for all types of sanitary fitting
- Inlet temperatures of faucet water precisely and internally regulated, without external power supply
- Easy to use and intuitive ergonomic system
- Pre-configured automatic tests according to standards
- Analysis and editing of automatic test reports
- Numerous tools for fixing and operating all types of faucets
- Available for rental for one-time use or to test equipment before purchase
- Short or long term rental, with discount and purchase option
- LF Technologies’ service includes: Transport, Commissioning, Training, Customized settings and telephone support throughout the rental period
- Training and testing on your site or on our premises
Rates upon request
- Rents by the week or month
- Commissioning / On-site training by our specialized technician
- Training/testing on LF Technologies’ site (Equipment rental, Training or Assistance of our specialized technician)
- Rental with option of purchase
Bench developed to meet these standards:
Advantages of Skydrobench
Rent possibility
The Skydrobench package is available for occasional use or to test the material before purchase.
Stand-alone system
Skydrobench requires only electrical and pneumatic power, and operates in a closed loop.
Standards testing
The tests are automatic and pre-programmed according to the chosen standards.
Automatic reports
Analysis of results and automatic test reports.
TECHNICAL SPECIFICATIONS Performance test bench
Spécification | Skydrobench |
Caractéristiques de l'appareil | |
Débit EC et EF | 0-25 l/min |
Pression EC et EF | 0-6 bar |
Mesure de pression | ± 0,01 bar |
Débitmètrie EC, EF, EM | ± 0,1 l/min |
Régulation de pression EC et EF | ± 0,05 bar |
Mesure de température EC, EF, EM | ± 0,2° C |
Puissance de chauffe | 20 kW |
Puissance de refroidissement | 20 kW |
OPTIONS
Linear actuator
Linear actuator
Water distributor for hot and cold circuits for energy savings and closed circuit
When the water supply circuit to a bench is a closed circuit, the Splitter returns the mixed water mixed by the tap to the hot water circuit on the one hand, and the cold water circuit on the other, in proportion to temperature. Thanks to this system, the heating and cooling capacities of the hot and cold water generators can be significantly reduced.
Automatic analysis and reporting software
The automatic analysis and reporting software allows each test function to be analysed from the measurement files according to various standards, curves and numerical results to be displayed and an automatic test report to be produced.
